get it and develop
MAMWLE-DVK-CB01
Development kit for MAMWLE modules

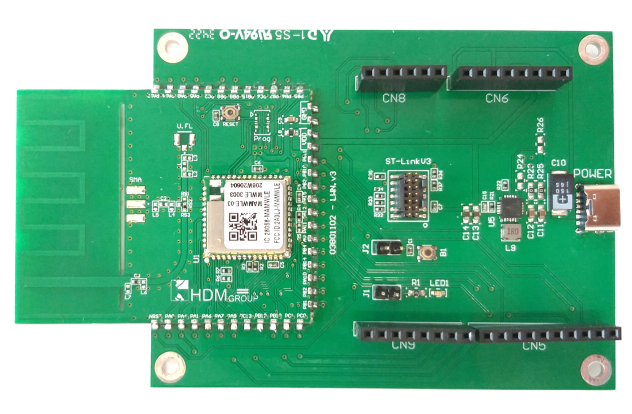

The MAMWLE-DVK-CB01 is designed for prototyping and developing LoRaWAN® systems for environmental or industrial monitoring. It is a complete development kit consisting of a carrier board mounting a LoRa node.
The LoRa node is a compact and versatile radio board, which is compatible with different types of antenna and which can be interfaced to different types of sensors/actuators with analog or digital input/output.
The Carrier Board is used to easily interface the LoRa node to different types of sensors/actuators, thanks to the ARDUINO UNO R3 standard connectors. The Carrier Board can be powered via a standard USB Type-C connector and can be fixed with screws thanks to the four M3 holes placed at the corners of the board.
Main Characteristics
- LoRaWAN protocol
- Frequency: 868 MHz (915 MHz version on request)
- Maximum dimension with PCB antenna: 70x116mm
- Supply voltage: 5 Vdc
- Maximum current: 2.1A
- Communication interfaces: I2C; SPI; USART; LPUART; ADC; GPIO; SWO
- Compatibile with shield ARDUINO UNO R3
The Carrier Board with the LoRa node constitutes a development kit (MAMWLE-DVK-CB01) useful for evaluating the functionality of the MAMWLE module and to develop applications based on it.
